Band: UC

• Frequency Range: 655- 679MHz

• Transmitter Output Level: 10dBm

• Operating Range Under Typical Conditions: 50m
(Note: Actual range depends on RF signal absorption, reflection and interference)

• Audio Frequency Response (+ / - 3dB): 60Hz - 16KHz

• Total Harmonic Distortion (+ / - 30KHz deviation [1KHz tone]): <1%

• Dynamic Range: >90dB A-weighted

• Operating Temperature Range: -10° to +50°c
(Note: Battery characteristics may affect range)

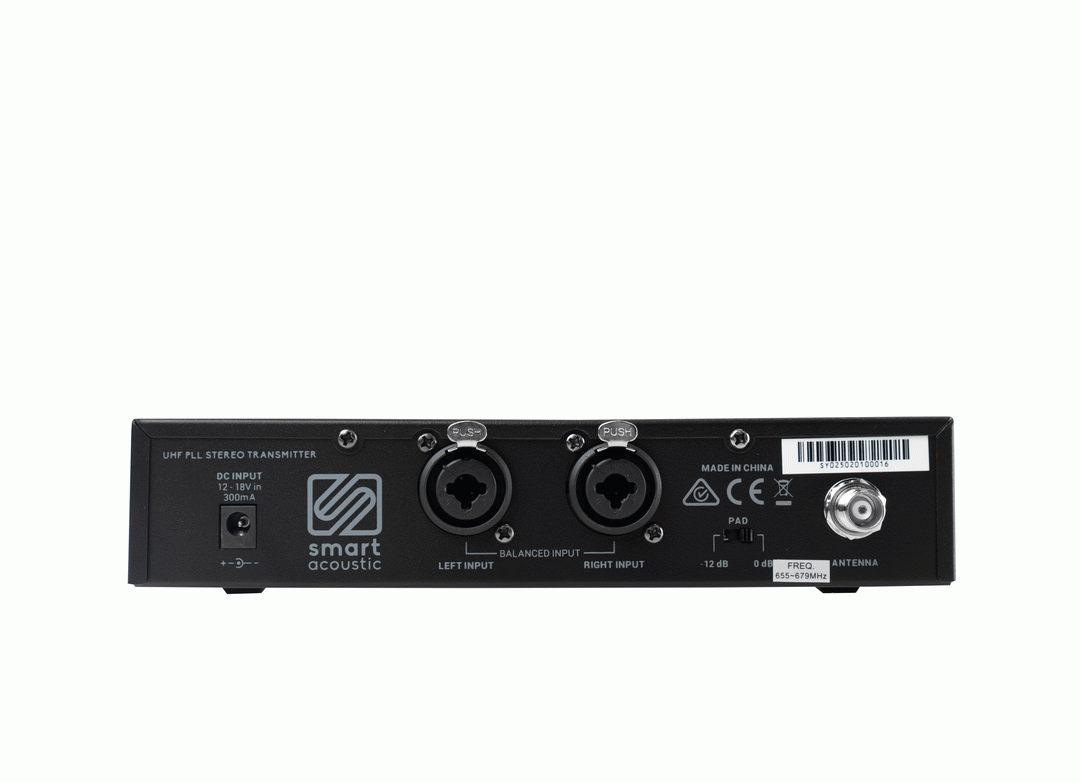

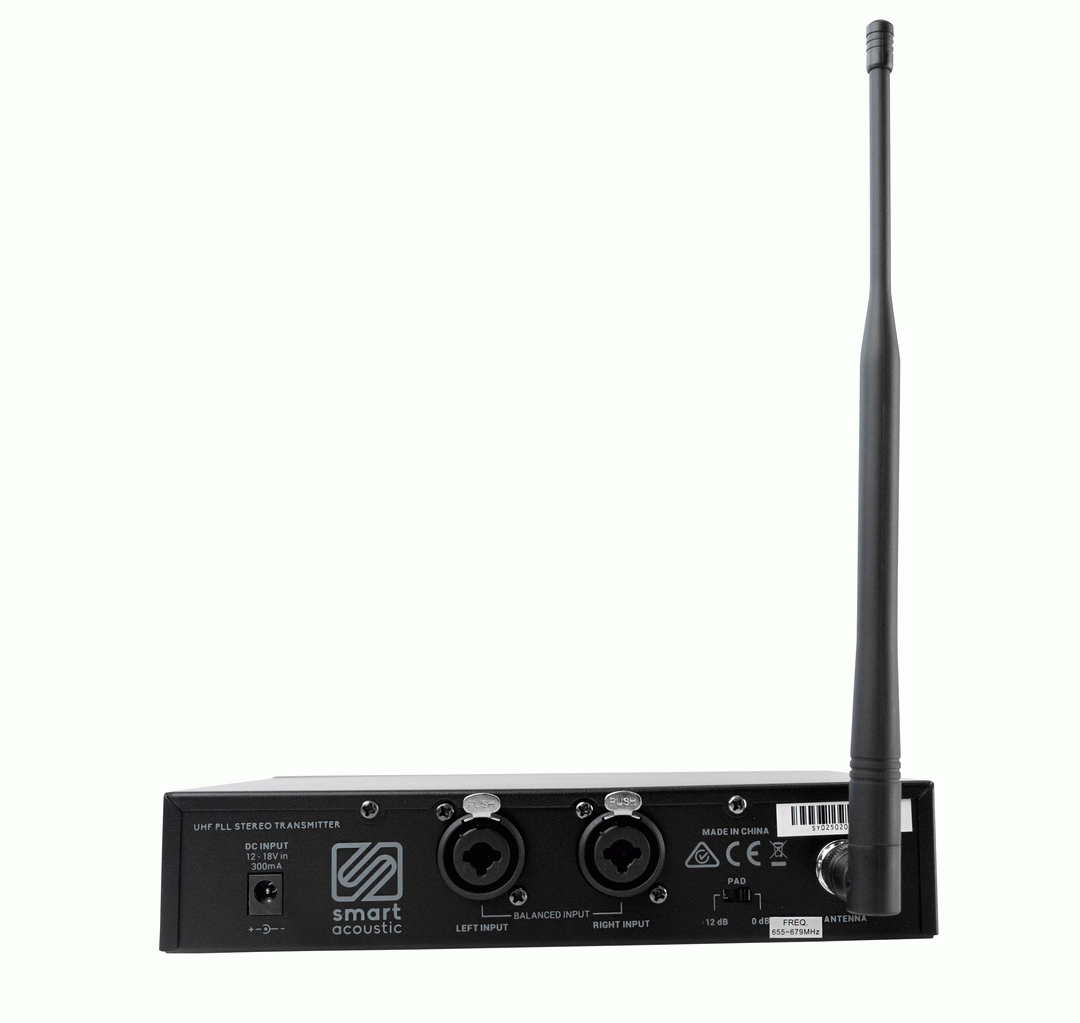

TRANSMITTER SPECIFICATIONS:

• Max Audio Input Level: +6dBV

• Gain Adjustment Range: 40dB

• Input Impedance: 6.8K ohm

• Dimensions: 44mm x 212mm x 160mm

• Weight: 900 grams

• Power Requirements: 12 - 18 V DC at 300mA - supplied by external power supply

• XLR Input: Impedance balanced (Pin 1 - ground - cable shield / Pin 2 - Hot / Pin 3 - Cold)

RECEIVER SPECIFICATIONS:

• Audio Input Level: 100mW

• Sensitivity: -94dBm for 30dB SINAD, typical

• Image Rejection: >55dB

• Dimensions: 90mm x 64mm x 23mm

• Weight: 100 grams without batteries

• Power Requirements: 2 x AA batteries (alkaline or rechargeable)

• Battery Life: >5 Hours

RRP $489.00

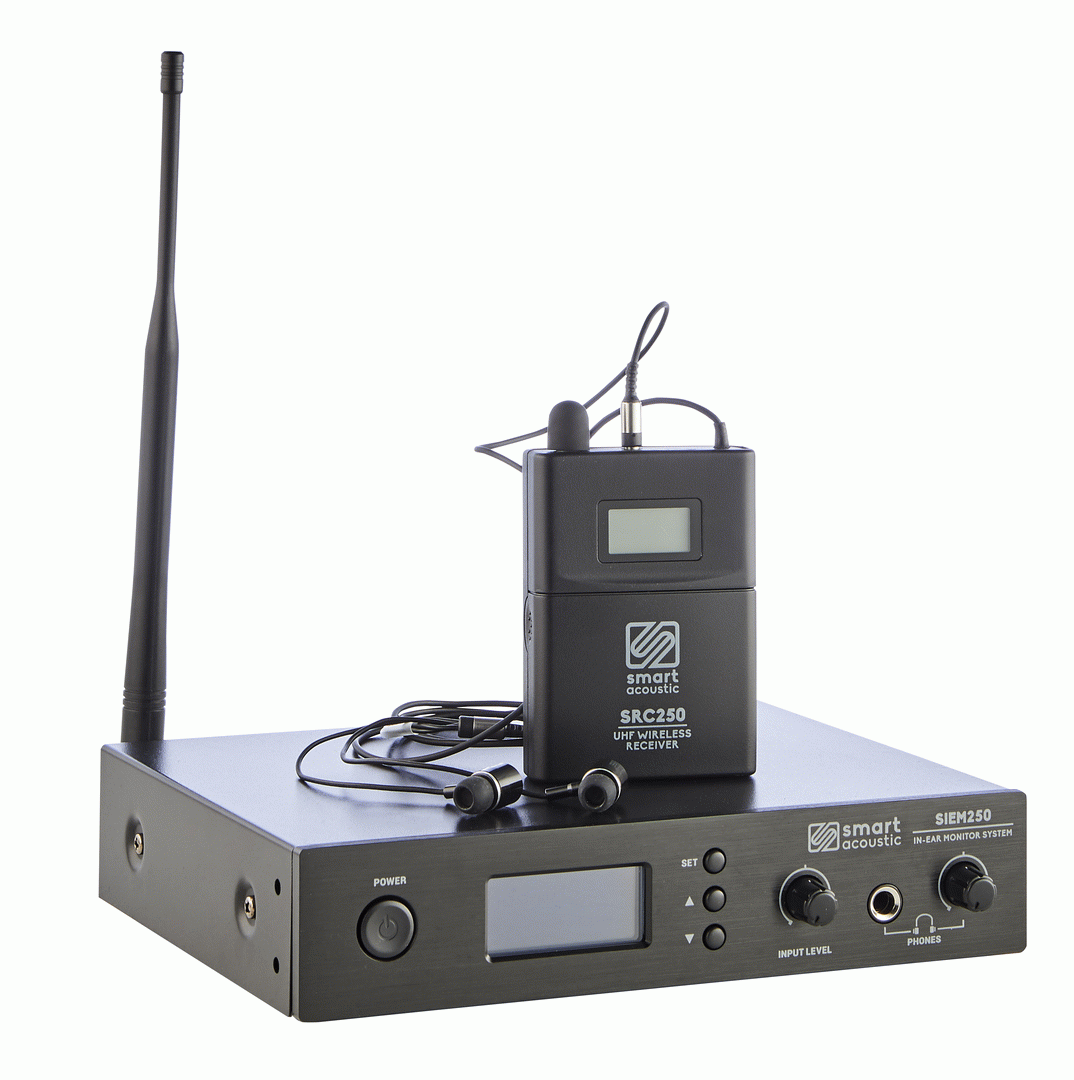

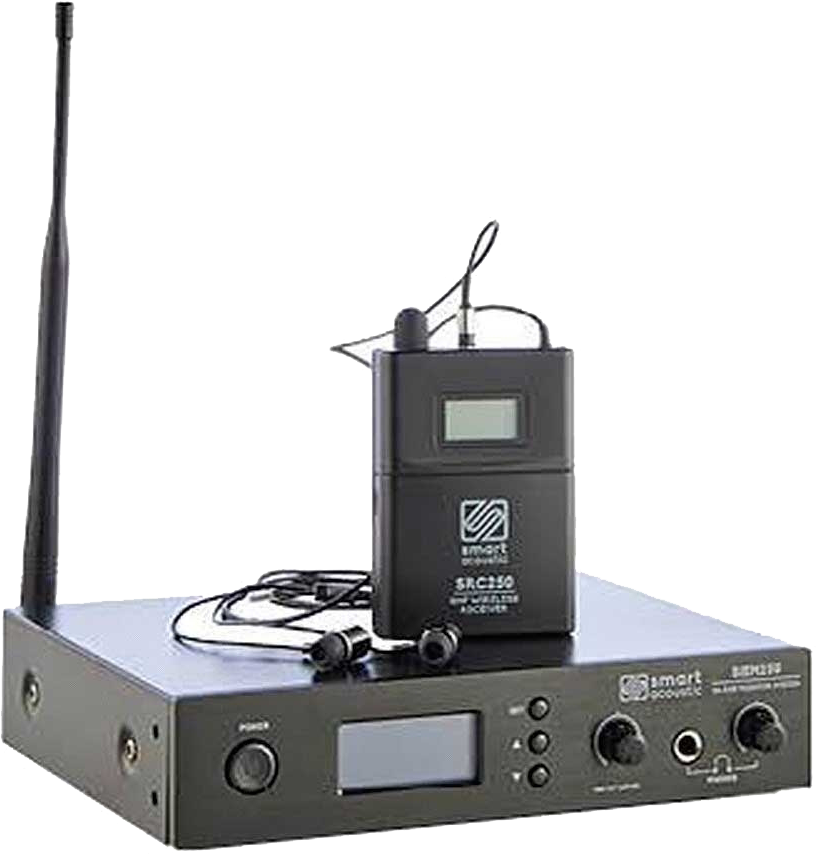

Wireless In Ear Monitoring System
