The RockBoard® PatchWorks Solderless Patch Cable System features the first genuine 2-directional 2-piece solderless plug design on the market designed and developed in Germany. They will always offer the plug orientation you need, since you can easily flip them from straight to angled or vice-versa. The patented easy-to-use design has a two-piece plug features a slim and compact design for saving pedalboard real estate that can be changed from straight to angled simply by turning one part by 90 degrees. Using professional-grade, high-quality cable and connectors with gold-plated tips, the RockBoard® PatchWorks give you everything you desire for your hi-fi pedalboard. Build your own patch cables, in exactly the length you need them, cutting down on excess cable path and curbing signal loss.



solderless patch cable system
set for assembly of 5 patch cables
unique 2-directional 2-piece connector design (patent pending)
can be assembled as either straight or angled plugs
plug’n play design - no cable stripping required

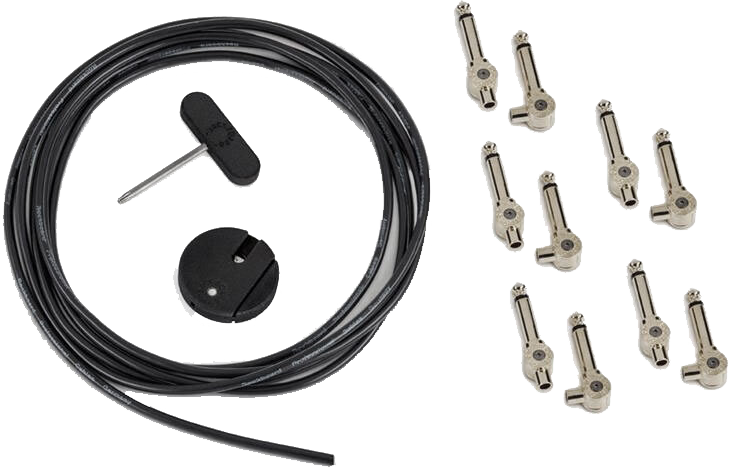

includes 10 plugs and 3 m / 9.8 ft cable
plug dimensions straight (L x W x H) 20 x 12 x 10 mm / 13/16" x 1/2" x 3/8"
plug dimensions angled (L x W x H) 15 x 13 x 10 mm / 9/16" x 1/2" x 3/8"
gold plated tips
chrome finish
low capacitance cable for maximum signal transparency
flexible oxygen free copper conductor 7 / 0.16 mm
stiff PE insulation
braided tinned copper shielding 6 x 16 / 0.12 mm
additional black outer PVC jacket
capacitance cond./shield less than 8 pF/decimeter
conductor resistance of 4 mOhm/decimeter
operating temperature -15°C to +70°C / 5° F to 158° F
diameter 4 mm / 3/16"
incl. TX8 wrench, cable cutter and 10 spare screws

SKU WR-RB-PWSET-C
Brand RockBoard
Shipping Weight 1.0000kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.004500000m3
