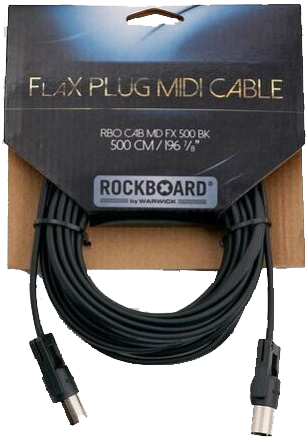

After the introduction of our Flat MIDI Cables, we got a lot of feedback, regarding orientation and size of plugs as well as requests for affordable MIDI Cables with plugs that could be both - angled and straight. We are happy to oblige and took our design team to the task. The result you can see in the RockBoard® FlaX Plug MIDI Cables. Based on our slimmed down Flat MIDI Cable design, these cables offer flat and compact plugs with a omni-directional construction. They can be adjusted to be either straight or angled to the left as well as to the right, and locked into place using two hex key set screws. Anything goes with the RockBoard® FlaX Plug MIDI Cables.

flat MIDI cables with rectangular profile with omni-directional, lockable compact plugs
plug orientation alterable from straight to angled to the left or right
orientation lockable via 1.5 mm hex key wrench (not included)
compact design saves pedalboard real estate
flat rectangular cable prevents cable breakage, cable jams and keeps your setup tidy
suitable for Clock/SYNC Capabilities & Phantom Power
flexible oxygen free copper conductors 5 x 7 x 0.12 mm
DIN 5-pin connectors
max. rated current 1A
outer PVC insulation
operating temperature -20° C to +60° C
outer dimensions cable (W x H) 6.5 x 3.5 mm (rectangular)
plug dimensions straight (L x W x H) 33 x 20 x 15 mm / 1 5/16" x 13/16" x 9/16"
plug dimensions angled (L x W x H) 33 x 20 x 20 mm / 1 5/16" x 13/16" x 13/16"
length 30 cm / 11 13/16"
black

SKU WR-FLATXM-30-BK
Brand RockBoard
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000500000m3
