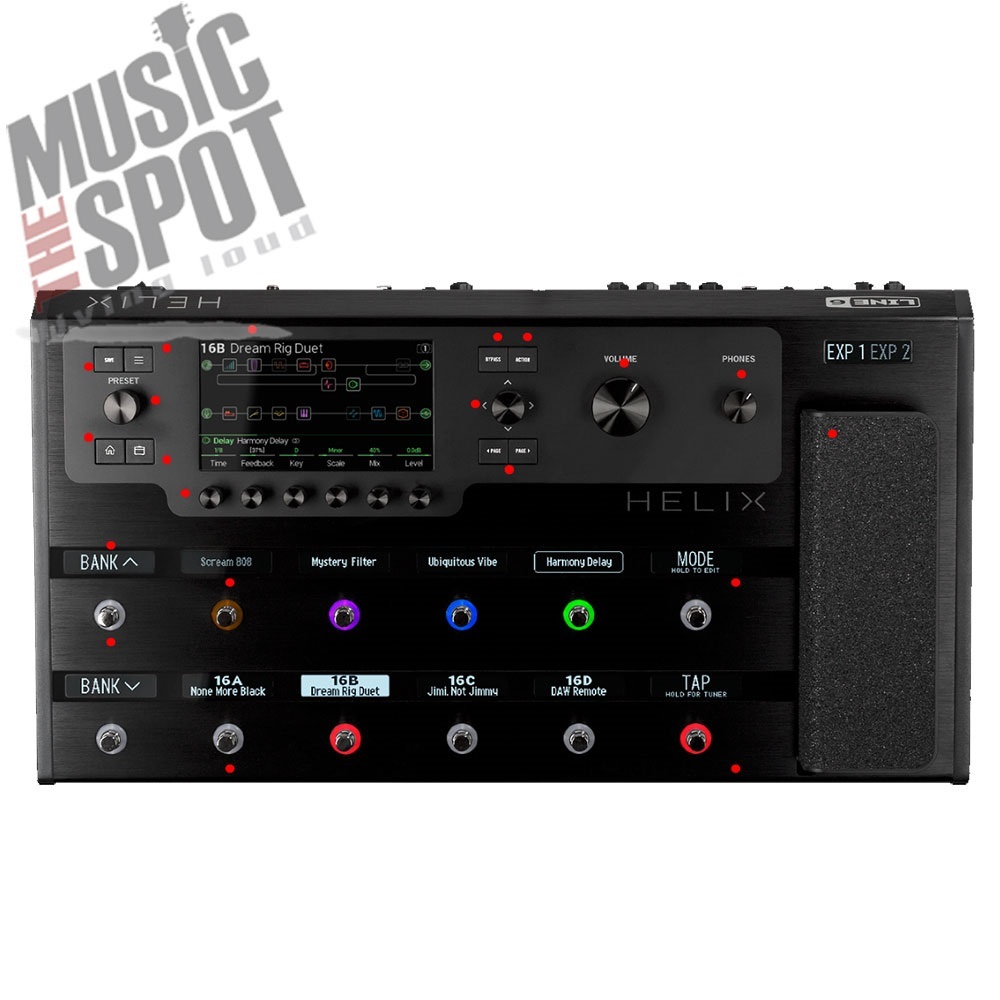

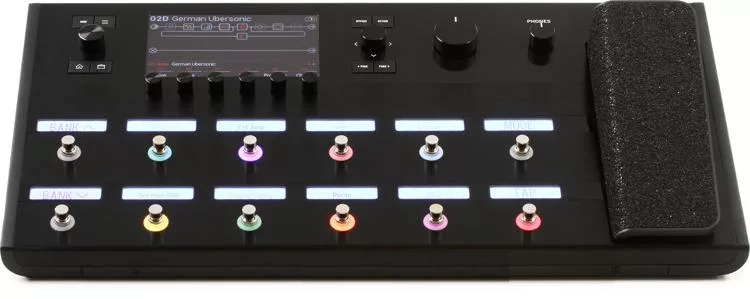

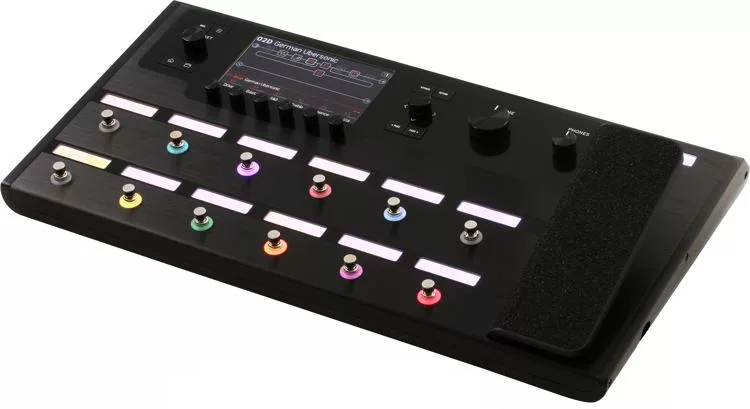

The Helix Floor Processor is the flagship of the Helix family, and offers incredible power, flexibility and control.
HX Modeling uses dual-DSP processing to deliver the nuanced character of the original classics, providing you natural bloom, compression, modulation, and honk on some models, as well as intense gain and breakup in others.
The Helix Floor processor is a comprehensive master controller for your guitar system, with extensive I/O that provides unprecedented flexibility for studio and stage.
Your experience is made complete by touch-sensitive footswitched, customisable scribble strips, and a large colour LCD screen.

  • Flagship Helix multi-effects floorboard system
  • 12 capacitive-sensing footswitches and customizable scribble strips
  • Extensive I/O for seamless integration with your entire rig
  • 6.2" color display, expression pedal, and 8-in/8-out USB audio interface
  • Pedal Type:Multi-FX
  • Analog/Digital:Digital
  • Presets:1024 (8 setlists with 32 banks x 4 presets)
  • Number of Effects:200+ effects (Helix & Legacy combined, latest firmware), Up to 32 simultaneous FX (DSP permitting)
  • Effects Types:Distortion, Delay, Reverb, Modulation, Pitch shift, Synth filter, Compressor/Limiter, Wah
  • Amp Modeling:Over 100 Amp, Cab and Mic Models (latest firmware)
  • Impulse Response:IR support
  • Looper:60 seconds (mono), 30 seconds (stereo) full speed

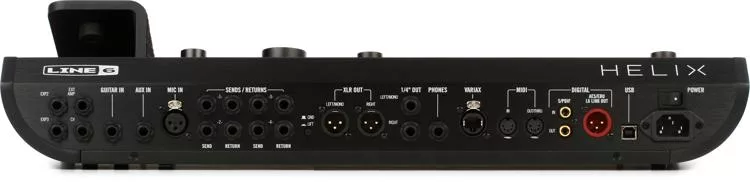

  • Inputs:1 x XLR (mic), 1 x 1/4" (guitar), 1 x 1/4" (aux), 4 x 1/4" (return)
  • Digital Inputs:1 x Coax (S/PDIF), 1 x RJ45 (Variax)
  • Outputs:2 x XLR, 2 x 1/4", 4 x 1/4" (Send)
  • Digital Outputs:1 x Coax (S/PDIF), 1 x XLR (AES/EBU, Link out)
  • MIDI I/O:In, Out/Thru
  • USB:1 x Type B (8 x 8)
  • Headphones:1 x 1/4"
  • Other I/O:1 x 1/4" (control voltage), 1 x 1/4" (ext amp switch), 2 x 1/4" (expression 2/3)
  • Expression Control:Built-in Pedal
  • Features:450MHz SHARC DPS Processor
  • Compatibility:OS X 10.10 or later, Windows 7 SP1 or later
  • Power Source:Standard IEC AC cable (included)
  • Height:3.61"
  • Width:22.05"
  • Depth:11.87"
  • Weight:14.6 lbs.
  • Manufacturer Part Number:99-060-0105
SKU AAF5733
Brand Line 6
Shipping Weight 10.0000kg
Shipping Width 0.400m
Shipping Height 0.180m
Shipping Length 0.780m
Shipping Cubic 0.056160000m3
Unit Of Measure ea
