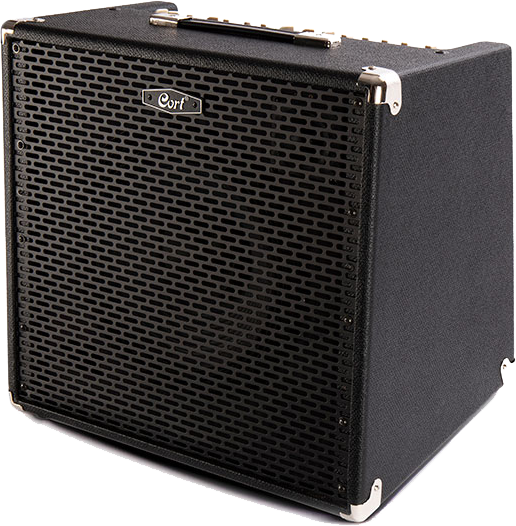

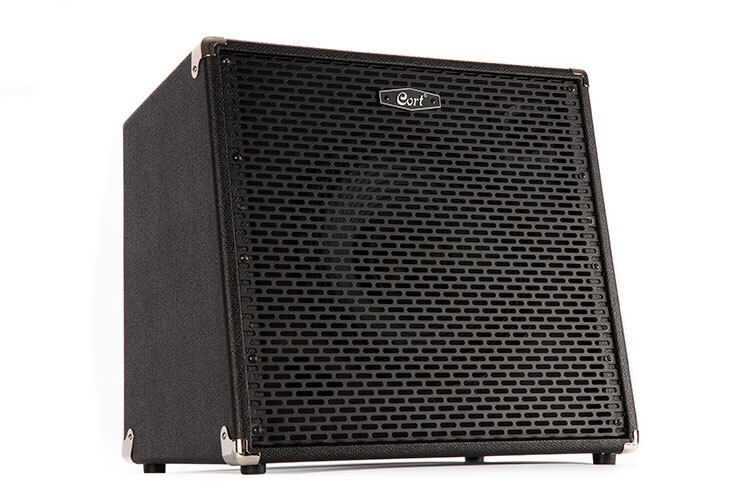

150W Multi-Purpose Amplifier

The MIX5 is a 150W multi-purpose combo amplifier that features 5 input channels, 4-band EQ and a built-in reverb that delivers great sound quality and flexibility in a rugged packaging that's perfect for small to medium sized venues and street performances.

12″ Speaker & 3″ Tweeter

Custom-designed 12" speaker and tweeter lets out an optimal sound with clear fidelity.

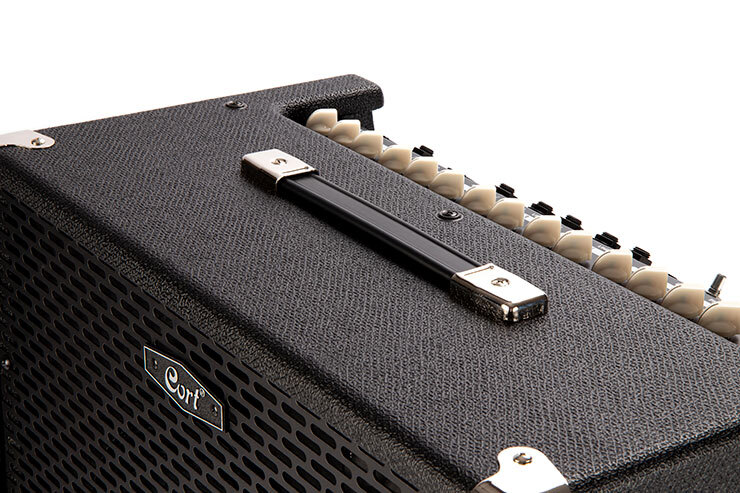

Rugged Packaging

No matter what or how many instruments you plug in, the MIX5's solid internal design and robust external structure gives stability.

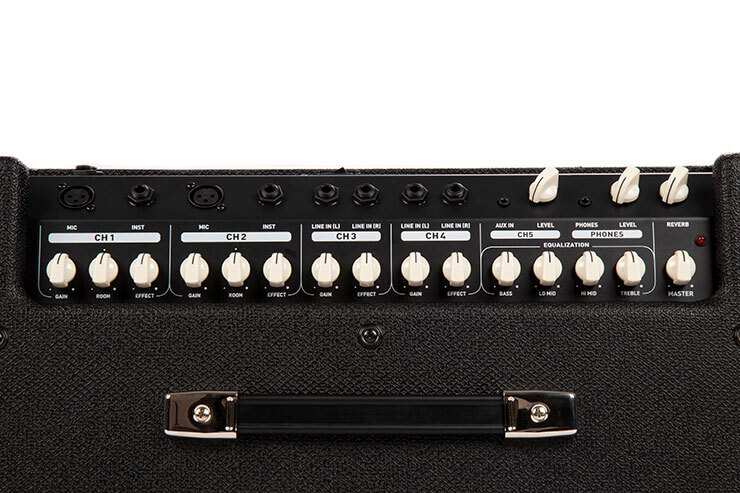

4 Band EQ & Gain Control

Each Channel is equipped with individual GAIN control, with master volume and 4-band EQ that controls the overall output mix.

Reverb Control

Channels 1-4 also has a dedicated EFFECT control for adjusting reverb levels independently, while the master REVERB control adjusts the overall effects level.

Room Control

Included exclusively for Channels 1 and 2 are the special ROOM control which are designed to emphasize high or low frequencies depending on the direction the knob is turned for a balanced EQ control.

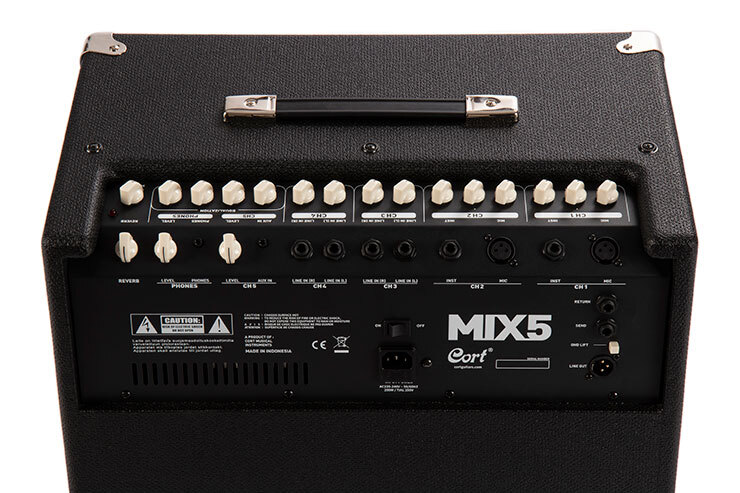

Rear Pannel

The MIX5 is also comes with various output options such as SEND / RETURN, and a dedicated LINE OUT option with XLR output for linking to another amplifier or a PA.

Phones

PHONES connection with LEVEL control allows headphones for silent use or performance monitoring.

INPUT VOLTAGEVaries Depending on the RegionPOWER REQUIREMENTS200WPOWER OUTAGE150WSPEAKER12″ 8Ω Speaker / 3″ TweeterDIMENSIONS500㎜ * 350㎜ * 460㎜WEIGHT18㎏SPECIAL FEATURESCONTROLS
Channel 1 & 2: Gain, Room, Effect
Channel 3 & 4: Gain, Effect
Channel 5: Level
Phones: Level
Equalization: Bass, Lo Mid, Hi Mid, Treble
Master Reverb Level
Master Level

INPUT / OUTPUT
Front:
Channel 1 & 2: XLR, Unbalanced Line In
Channel 3 & 4: Stereo Unbalanced Line In
Channel 5: 3.5mm AUX In
3.5mm Phone Out

Back:
Balanced Line Out w/ Ground Lift Button
FX Loop (Send / Return)
