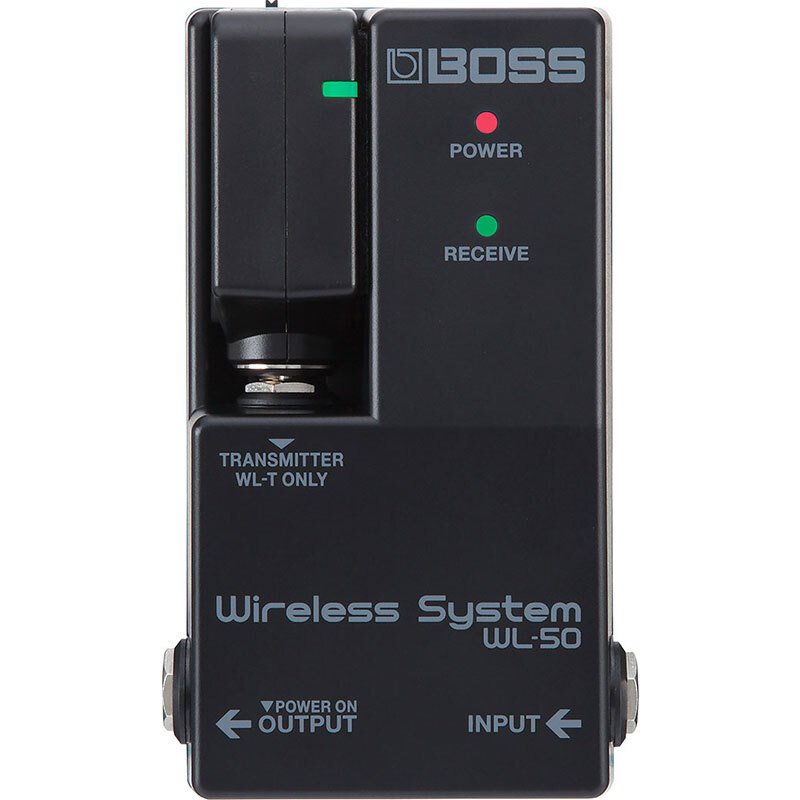

Boss WL50 Wireless System With the WL-50
SKU code: WL50
With the WL-50, it’s never been easier to bring wireless freedom to your pedalboard. Driven by new BOSS technology, the WL-50 delivers premium sound and a plug-and-play experience that eliminates all the hassles normally associated with wireless systems. The stompbox-sized receiver fits right alongside your other pedals, and includes a docking port for charging the transmitter and automatically setting the best wireless connection. There’s even a handy DC output, allowing you to distribute power to multiple pedals on your board.
Once you experience the wireless independence provided by the WL-50, you’ll never go back to using a standard cable again! Setup is quick and simple, and you’re able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.

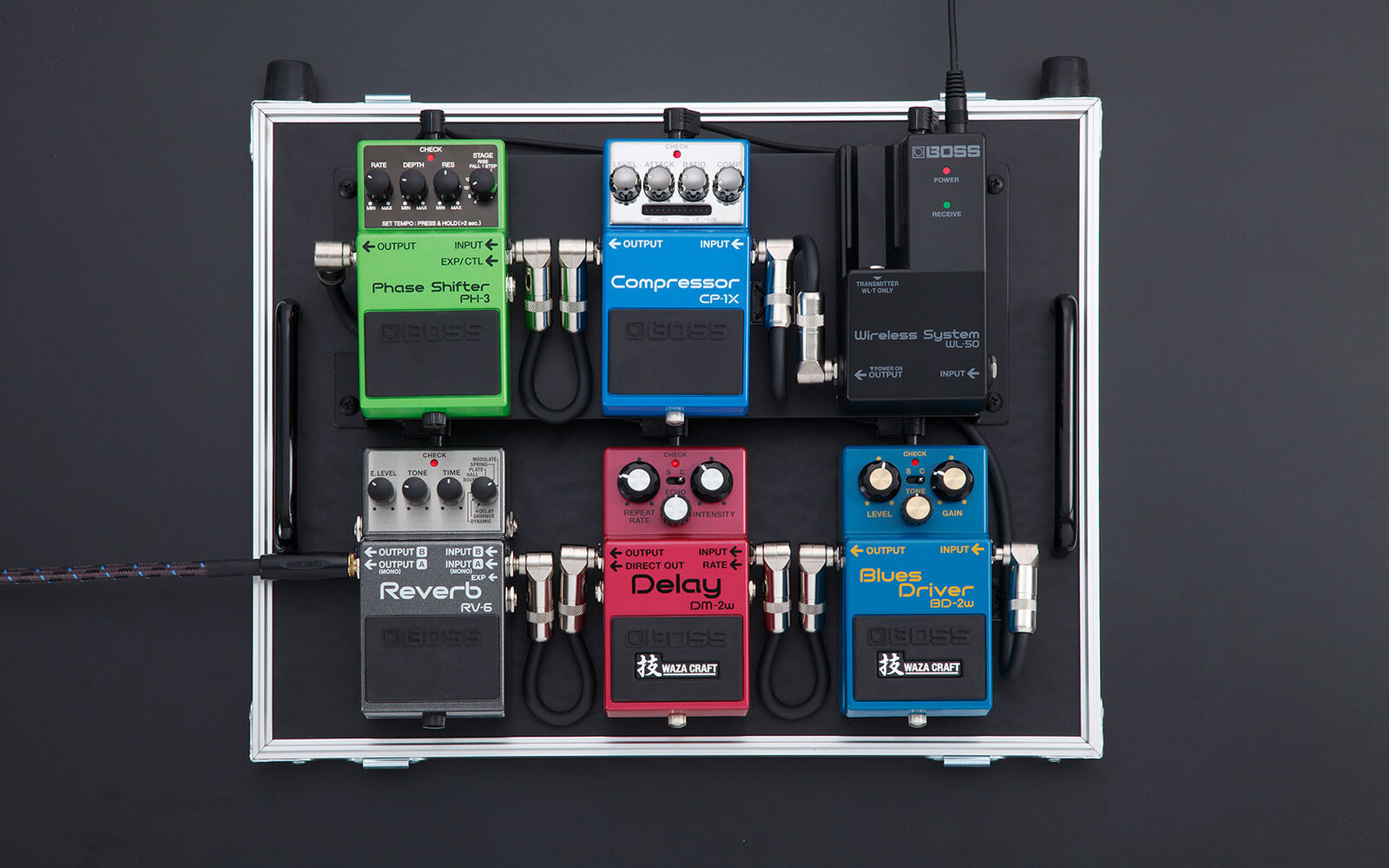

- Plug-and-play wireless system in a stompbox-size format for pedalboards
- Optimum wireless connection set automatically, with no complicated setup required
- Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and 65-foot/20-meter range (line-of-sight propagation)*
- Built-in rechargeable battery in transmitter provides up to 12 hours of continuous playing time
- Plug the transmitter into the receiver’s docking port for charging and automatic wireless setup**
- Selectable cable tone simulation options: short, long, and bypass
- Receiver powered by optional PSA-S adaptor or two AA batteries
- With PSA-S adaptor power, the receiver’s DC output can distribute power to one or more pedals using an optional PCS-20A daisy-chain cable
- Spare WL-T Transmitter available separately
* The transmission range may vary due to local conditions.
** To charge the transmitter, the receiver must be powered via a BOSS PSA-S adaptor. It’s also possible to directly charge the transmitter with a standard USB adaptor (5 V/500 mA or higher).
- Specifications (RECEIVER)
- Wireless Format
- BOSS proprietary digital audio format
- Wireless carrier frequency
- 2.4 GHz
- Compatible Channels
- 14
(May vary due to local conditions) - Transmission Range
- 65 feet line-of-sight
(May vary due to local conditions) - Latency
- 2.3 ms
- Dynamic Range
- 110 dB or greater
- Frequency Response
- 20 Hz--20 kHz
- Nominal Input Level
- -10 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -10 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Controls
- CABLE TONE switch (OFF/SHORT/LONG)
- Indicators
- POWER
RECEIVE - Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
TRANSMITTER jack: 1/4-inch TRS phone type
DC IN jack
DC OUT jack - Power Supply
- Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately) - Current Draw
- During wireless operation: 60 mA
While charging transmitter: 320 mA - Expected battery life under continuous use
- Alkaline battery (AA, LR6): Approximately 10 hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Owner's Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Rubber foot x 4
Alkaline battery (AA, LR6) x 2
An AC adaptor (PSA-S series) is required to charge the transmitter (WL-T). - Options (sold separately)
- AC adaptor: PSA-S series
Parallel DC cord: PCS-20A (DC Plug x8) - Size and Weight (RECEIVER)
- Width
- 72 mm
2-7/8 inches - Depth
- 121 mm
4-13/16 inches - Height
- 56 mm
2-1/4 inches - Weight (including battery)
- 220 g
8 oz - Specifications (TRANSMITTER (WL-T))
- Nominal Input Level
- -10 dBu (1 M ohm)
- Indicator
- BATTERY
- Connectors
- Input plug: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type - Power Supply
- Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port - Current Draw
- 350mA
- Battery charging time
- Approximately 3 hours
- Expected battery life under continuous use
- Approximately 12 hours
* These figures will vary depending on the actual conditions of use. - Size and Weight (TRANSMITTER (WL-T))
- Width
- 87 mm
3-7/16 inches - Depth
- 22 mm
7/8 inches - Height
- 36 mm
1-7/16 inches - Weight
- 43 g
2 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
