Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

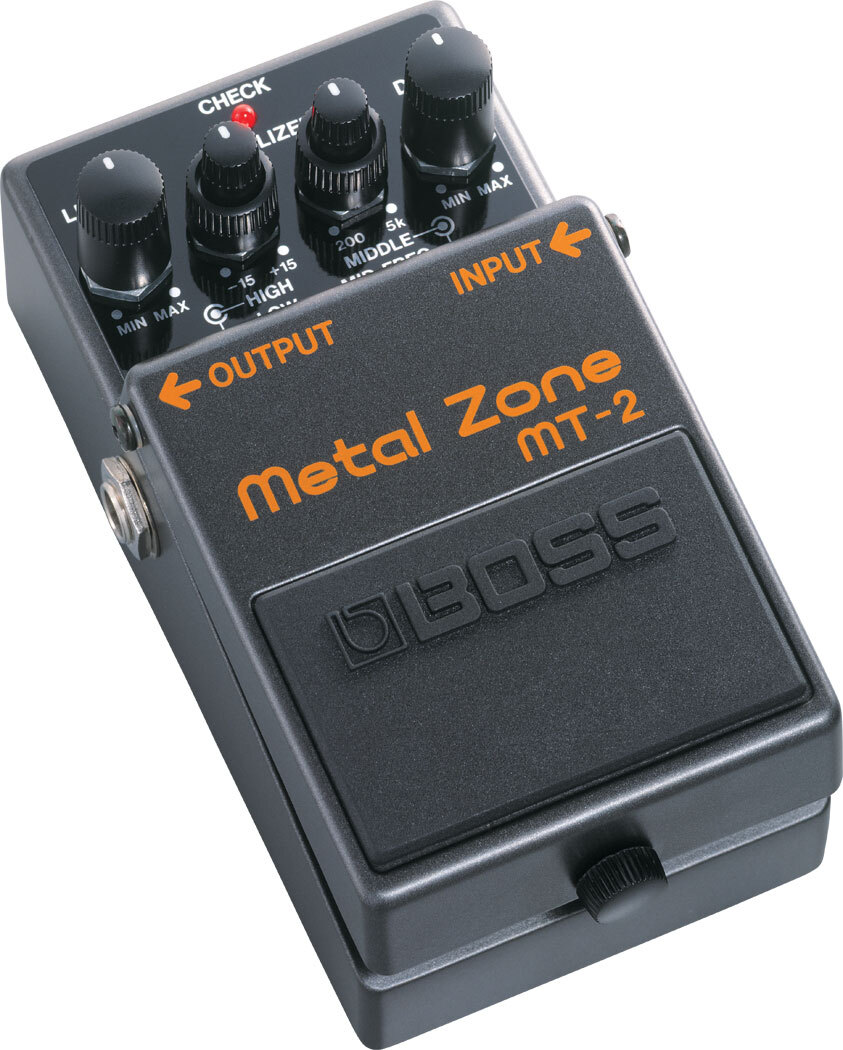

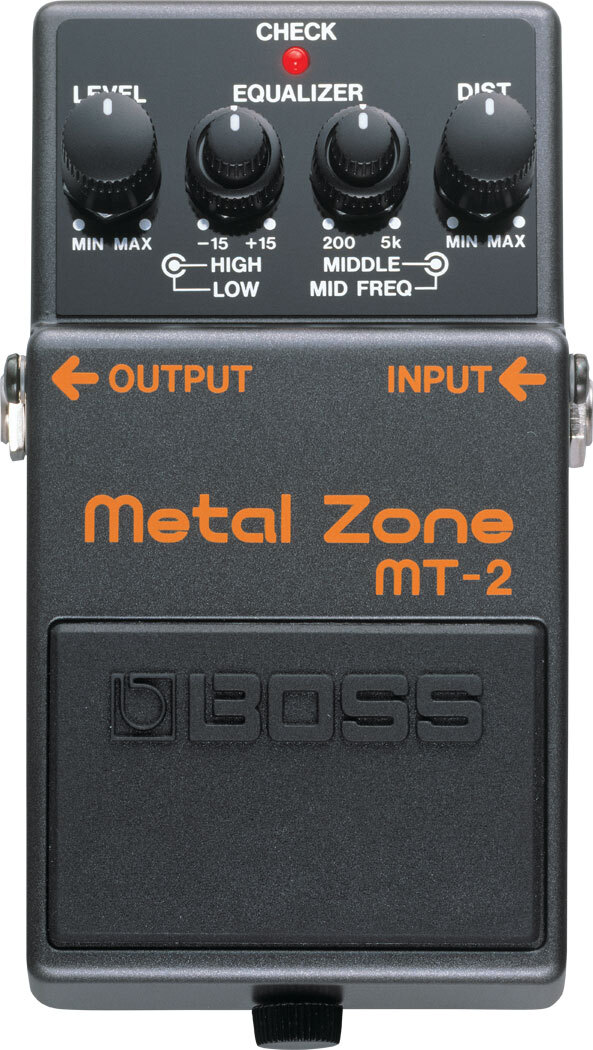

Controls

DIST knob
EQUALIZER MIDDLE/MID FREQ knob
EQUALIZER HIGH/LOW knob
LEVEL knob
Pedal switch

Indicator

CHECK indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

20 mA

Expected battery life under continuous use

Carbon: Approx. 19.5 hours
Alkaline: Approx. 34.0 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

AC adaptor: PSA series

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

410 g
15 oz
