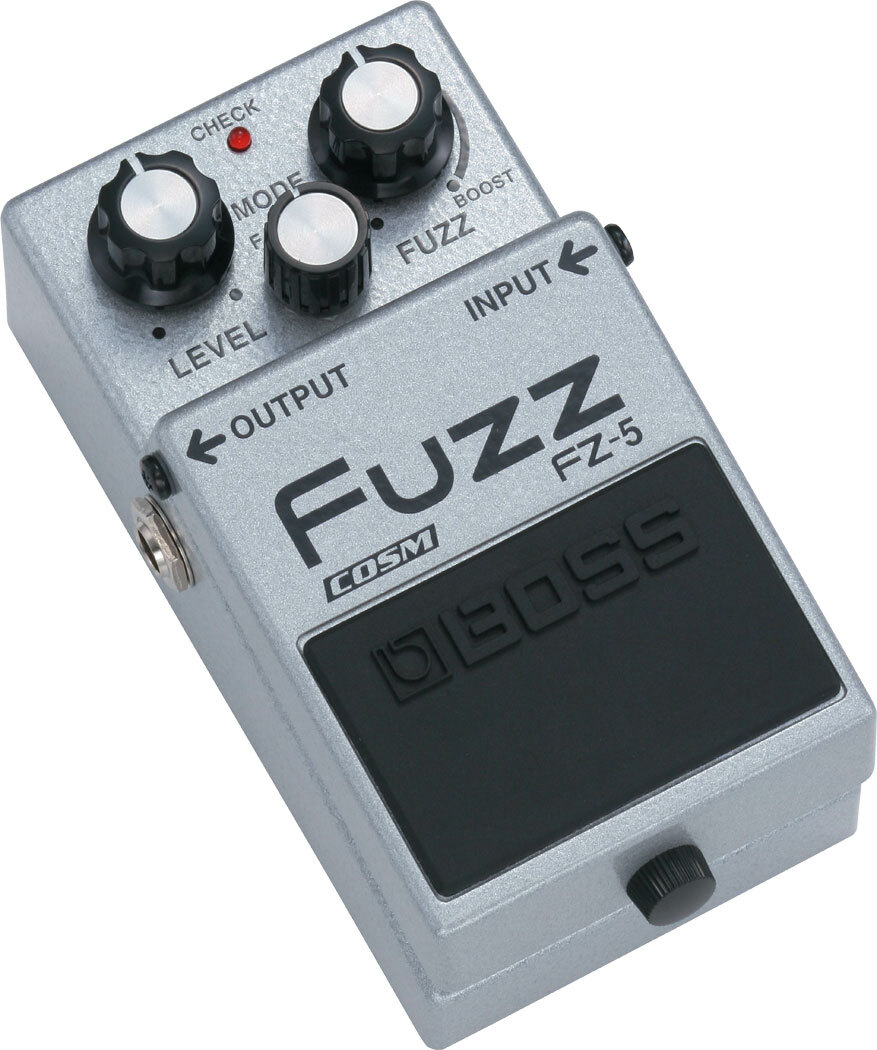

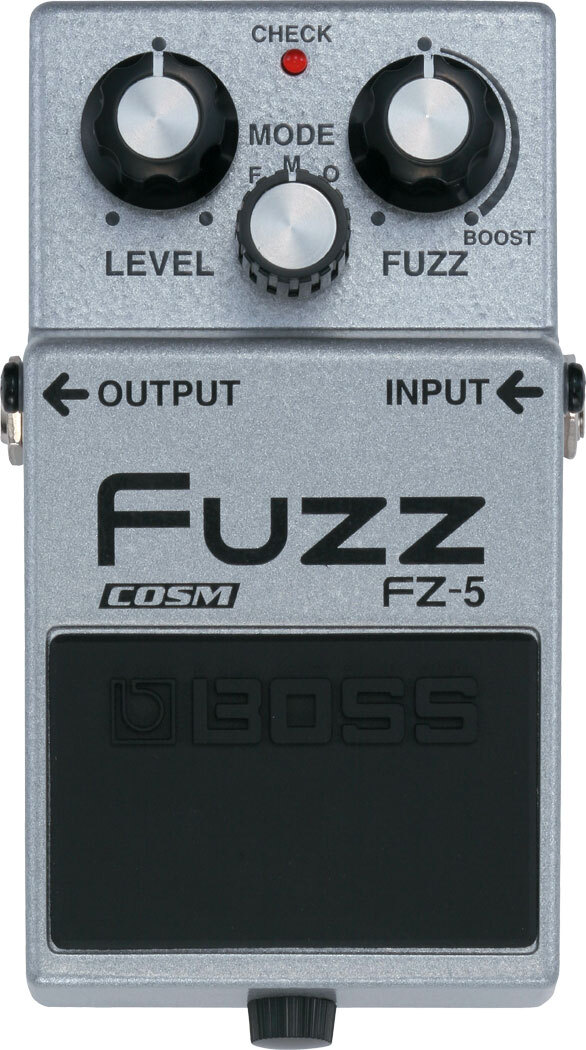

A DISTORTED BLAST FROM THE PAST
The FZ-5 is a modern pedal built for the modern guitarist, but the sounds you can get from the FZ-5 are pure retro. Looking back at the glorious rock sounds of the ’60s and ’70s, the FZ-5 recreates its vintage fuzz through BOSS state-of-the-art COSM technology. Recall the fuzz-filled flavors of classic pedals, such as the Maestro FZ-1A, Fuzz Face and Octavia pedals, and kick ’em into overdrive with the FZ-5’s Boost knob. BOSS’ proprietary COSM technology allows guitar players to recreate classic fuzz BOOST control for more aggressive tone. The FZ-5 is the perfect weapon for players wanting to beef up their rigs with classic retro fuzz artillery.



  • Vintage sounds inspired by famous fuzz pedals of the ’60s and ’70s
  • Uses advanced COSM technology to recreate classic fuzz
  • BOOST control for more aggressive tone
  • Road-tough BOSS metal construction
  • BOSS five-year warranty



Roland Corporation Australia warrants to customers who purchase any Boss Compact Pedals from an authorised Australian Roland/Boss distributor that Boss Compact Pedals will be free of defects in workmanship and materials for the duration of Five (5) years or otherwise as specified in writing by Roland Corporation at the time of sale.

Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
FUZZ knob
MODE knob
LEVEL knob
Pedal switch
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
36 mA
Expected battery life under continuous use
Alkaline: Approx. 10 hours
Carbon: Approx. 3 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Owner's manual
Mode sticker
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
440 g
1 lb
SKU FZ5
Barcode # 4957054403560
Brand Boss
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
Unit Of Measure ea
