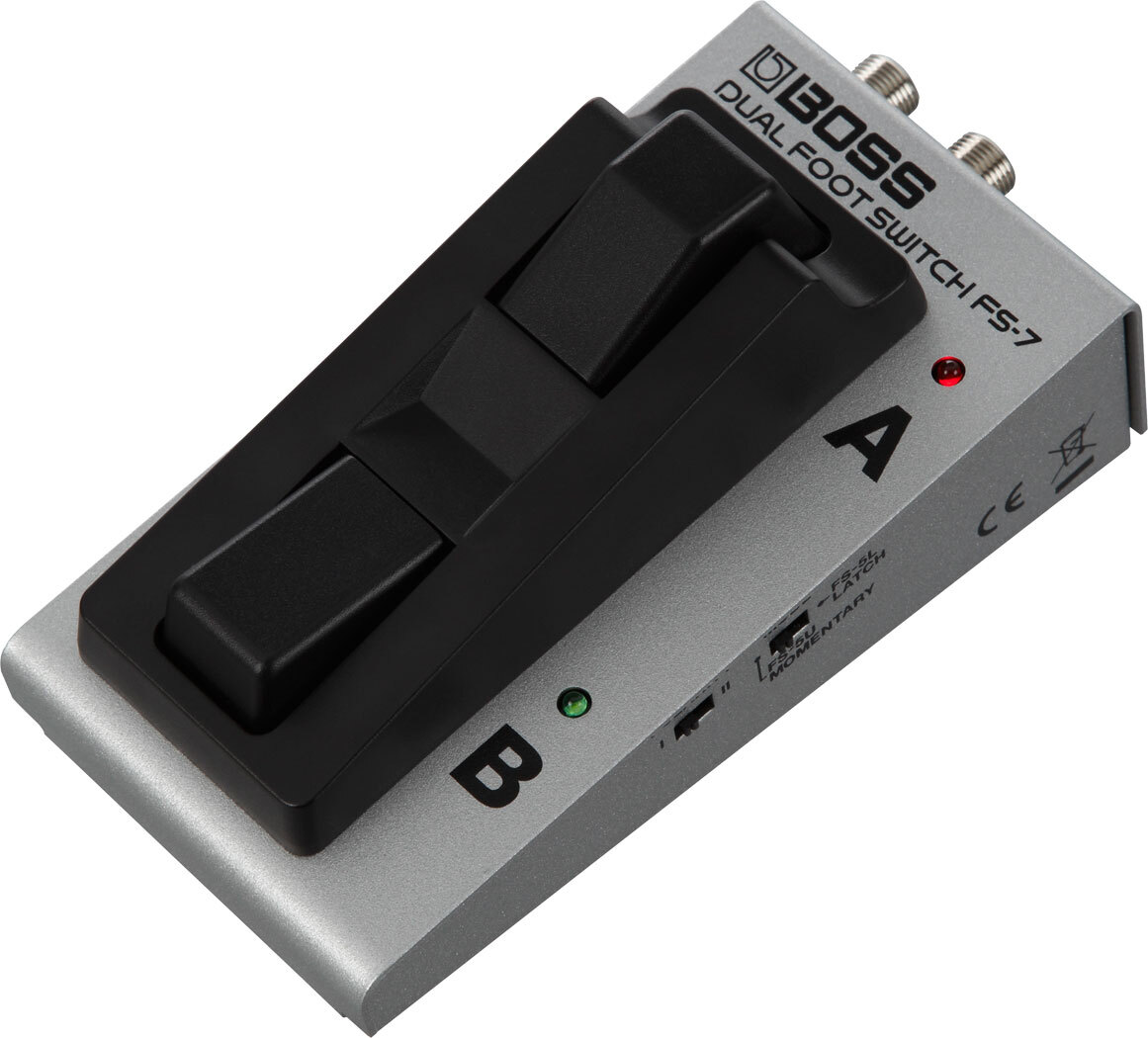

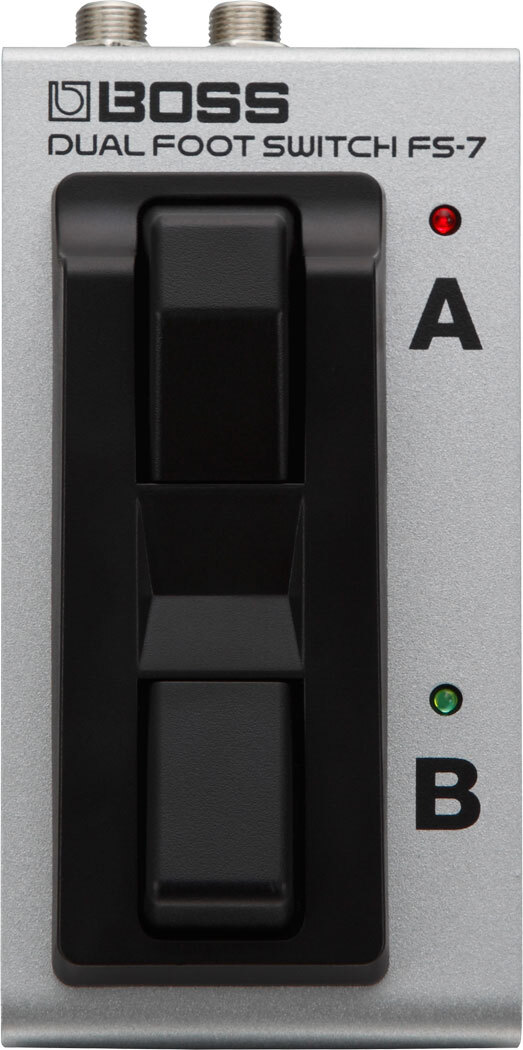

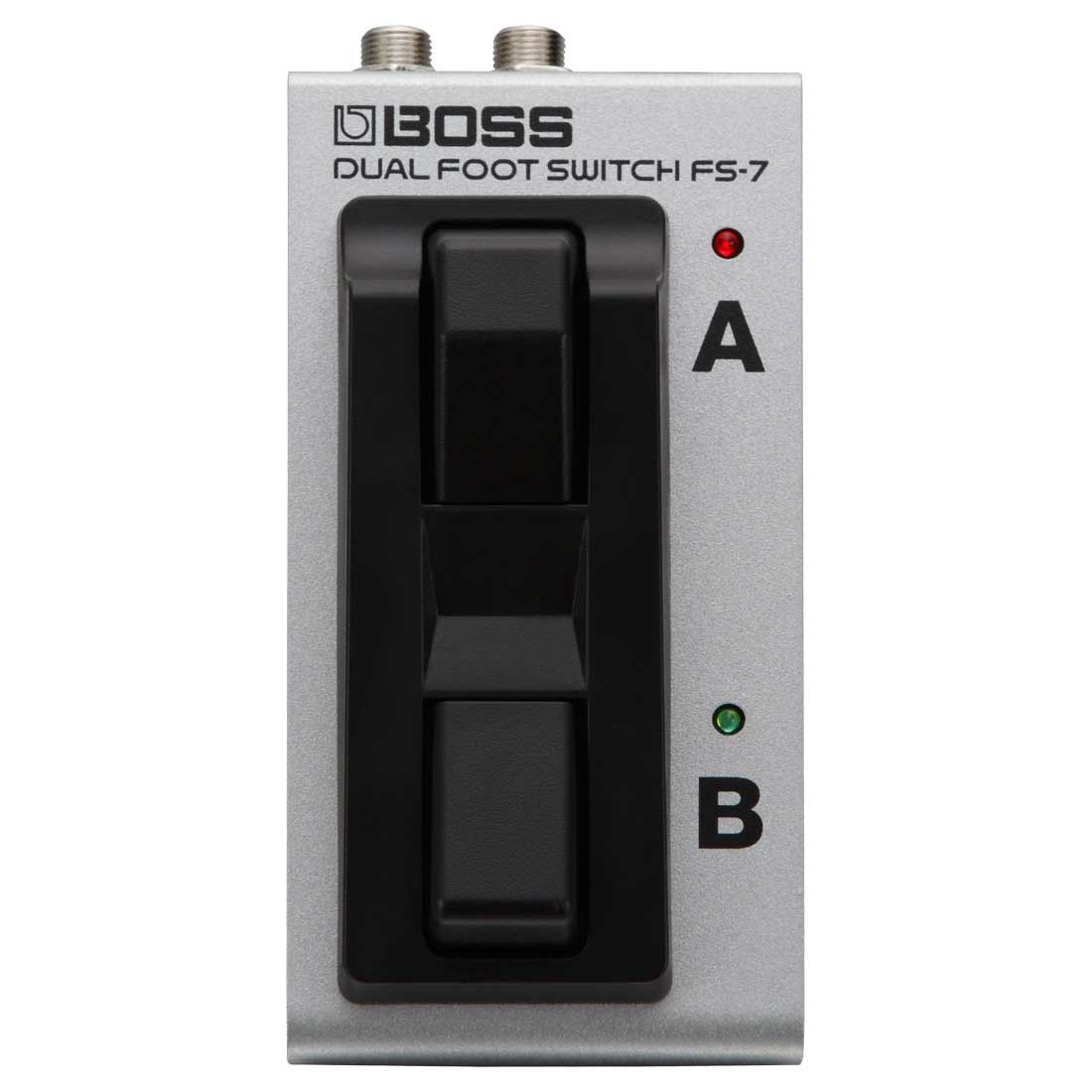

Boss FS-7 Dual Footswitch

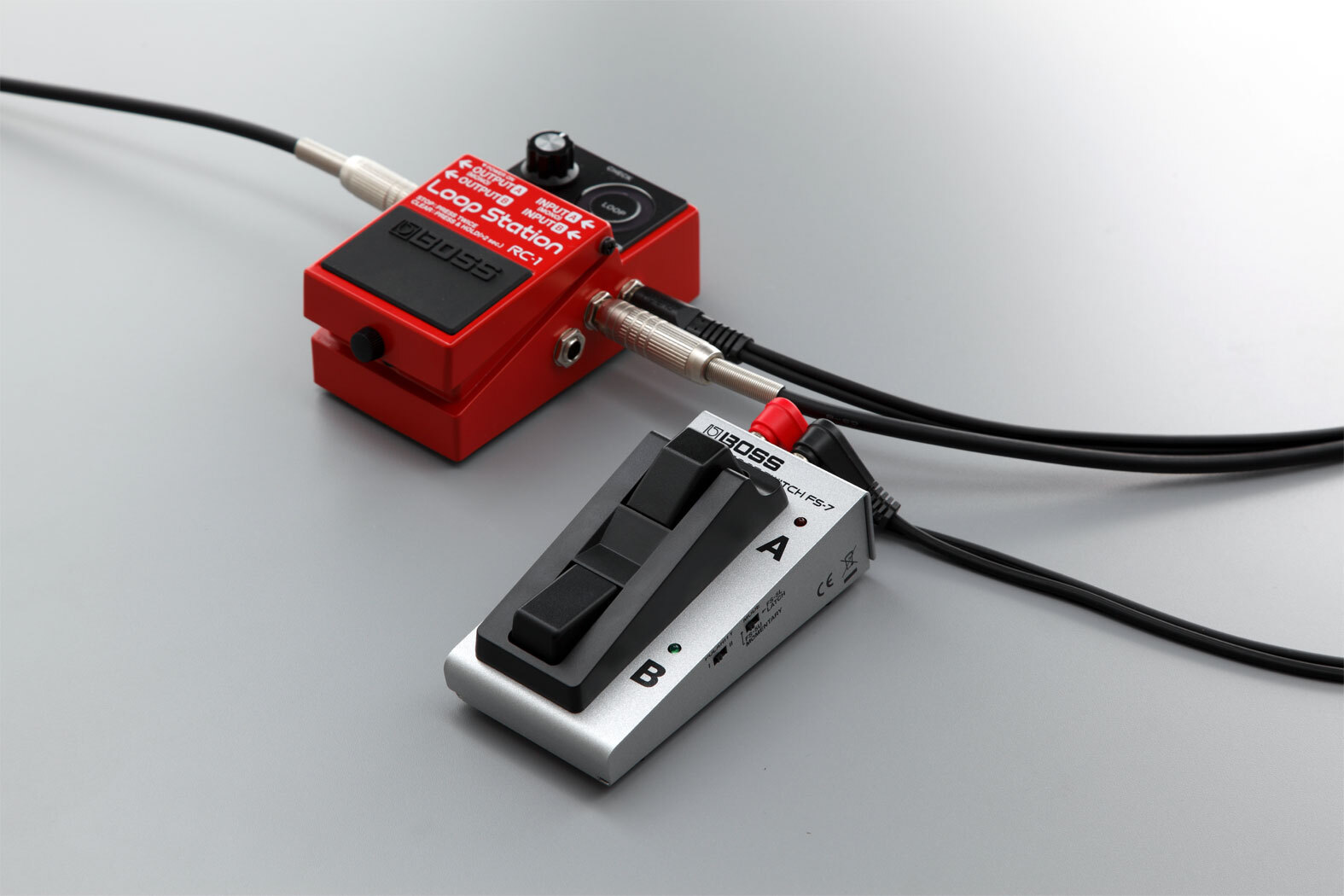

FS-7 is a compact dual footswitch for remote control of effect pedals or amp channel switching. Two footswitches are arranged in tandem, which saves space on effects pedal boards. Two selectable modes for latch or momentary allow for control of a wide range of equipment.

Dual footswitch in a small footprint
Latch/momentary switching function (common to A and B)
Durable steel chassis
Battery-free operation ideal for pedal boards
Power via 9v adapter (power splitter included)
Operates as momentary switch with no power*

*LEDs will not illuminate without AC power.

Dual footswitch in a small footprint
Latch/momentary switching function (common to A and B)
Durable steel chassis
Battery-free operation ideal for pedal boards
Power via 9v adapter (power splitter included)
Operates as momentary switch with no power*

*LEDs will not illuminate without AC power.

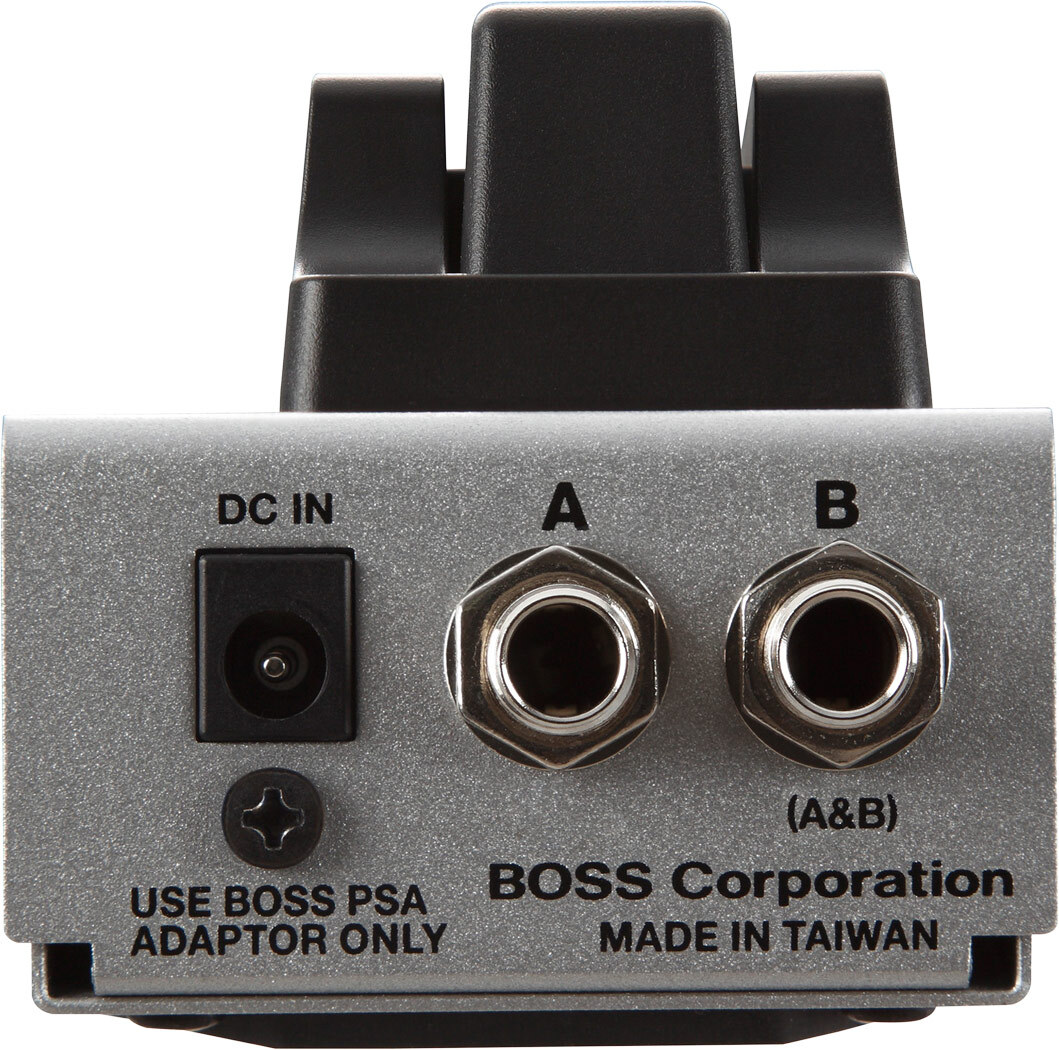

Connectors
A jack: 1/4-inch phone type
B jack: 1/4-inch TRS phone type (*)
DC IN jack

* You can also connect a 1/4-inch phone plug.
Indicators
A, B

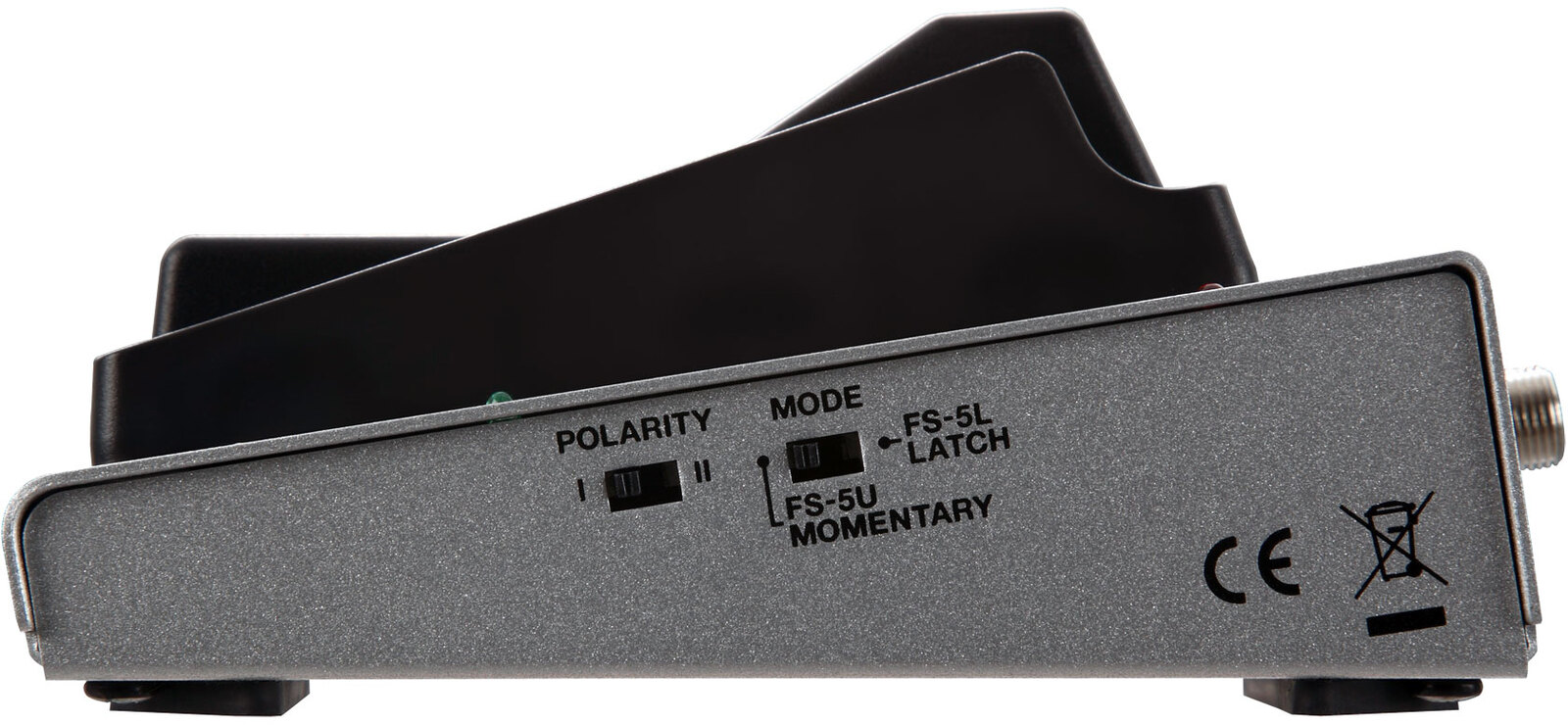

Controls
[MODE] switch
[POLARITY] switch
Power Supply
AC adaptor (PSA series: sold separately)
Current Draw
25 mA
Accessories

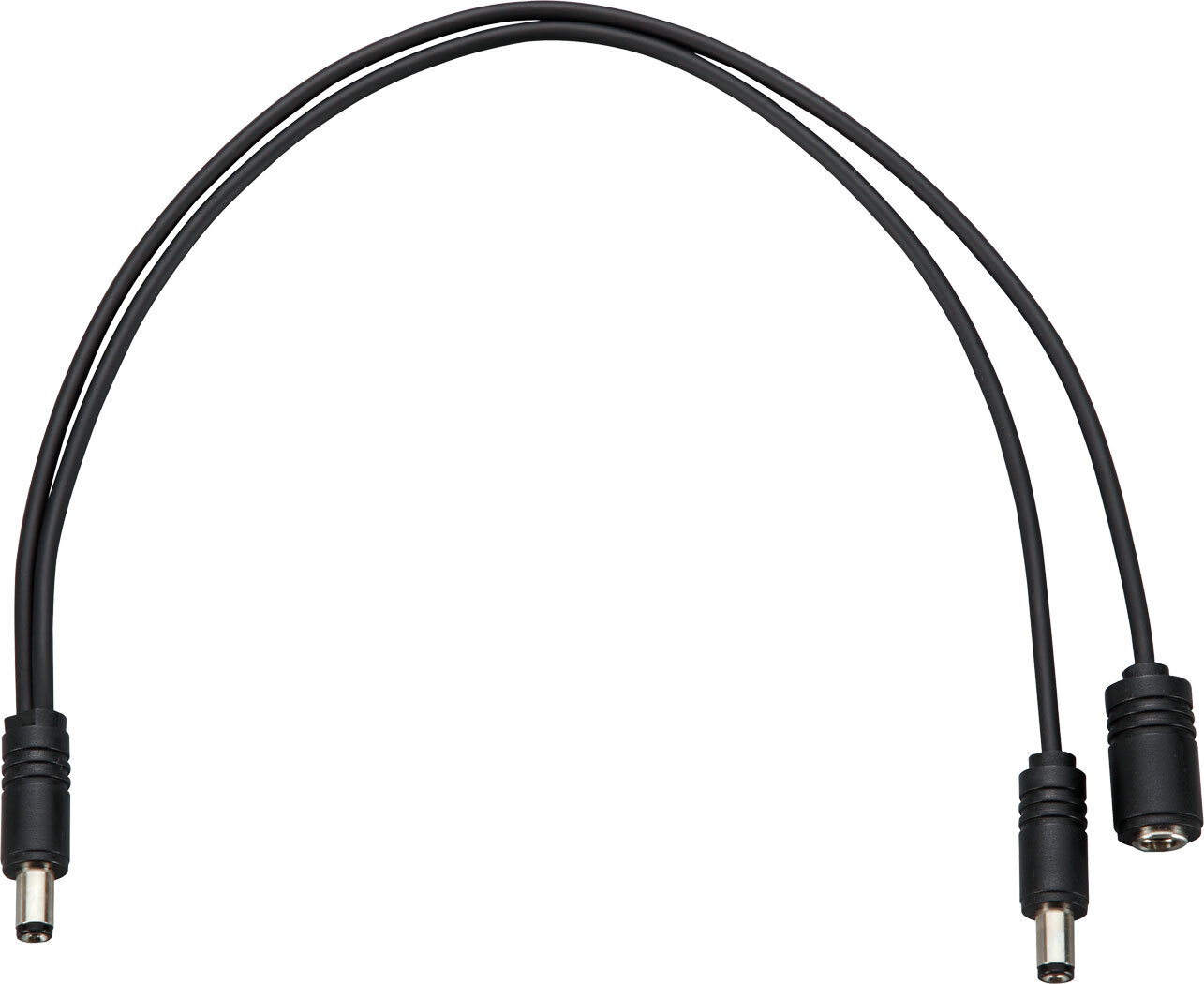

Parallel DC cable
Owner's Manual
Size and Weight
Width
62 mm
2-1/2 inches
Depth
131 mm
5-3/16 inches
Height
60 mm
2-6/16 inches
Weight
290 g
0 lbs. 11 oz.
*The specifications are subject to change without notice.
SKU FS7
Barcode # 4957054506582
Brand Boss
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.080m
Shipping Cubic 0.000800000m3
Unit Of Measure ea
