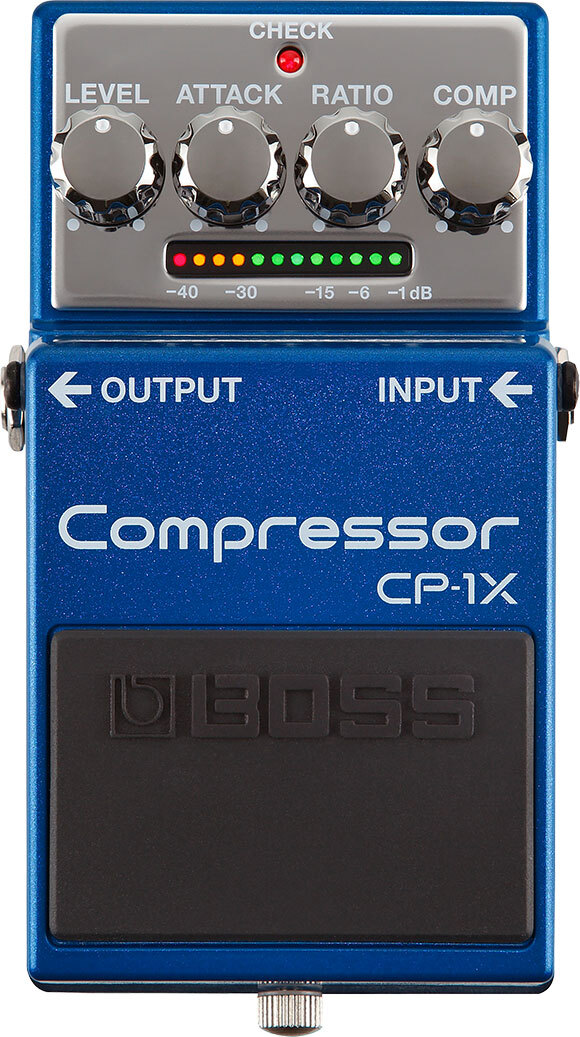

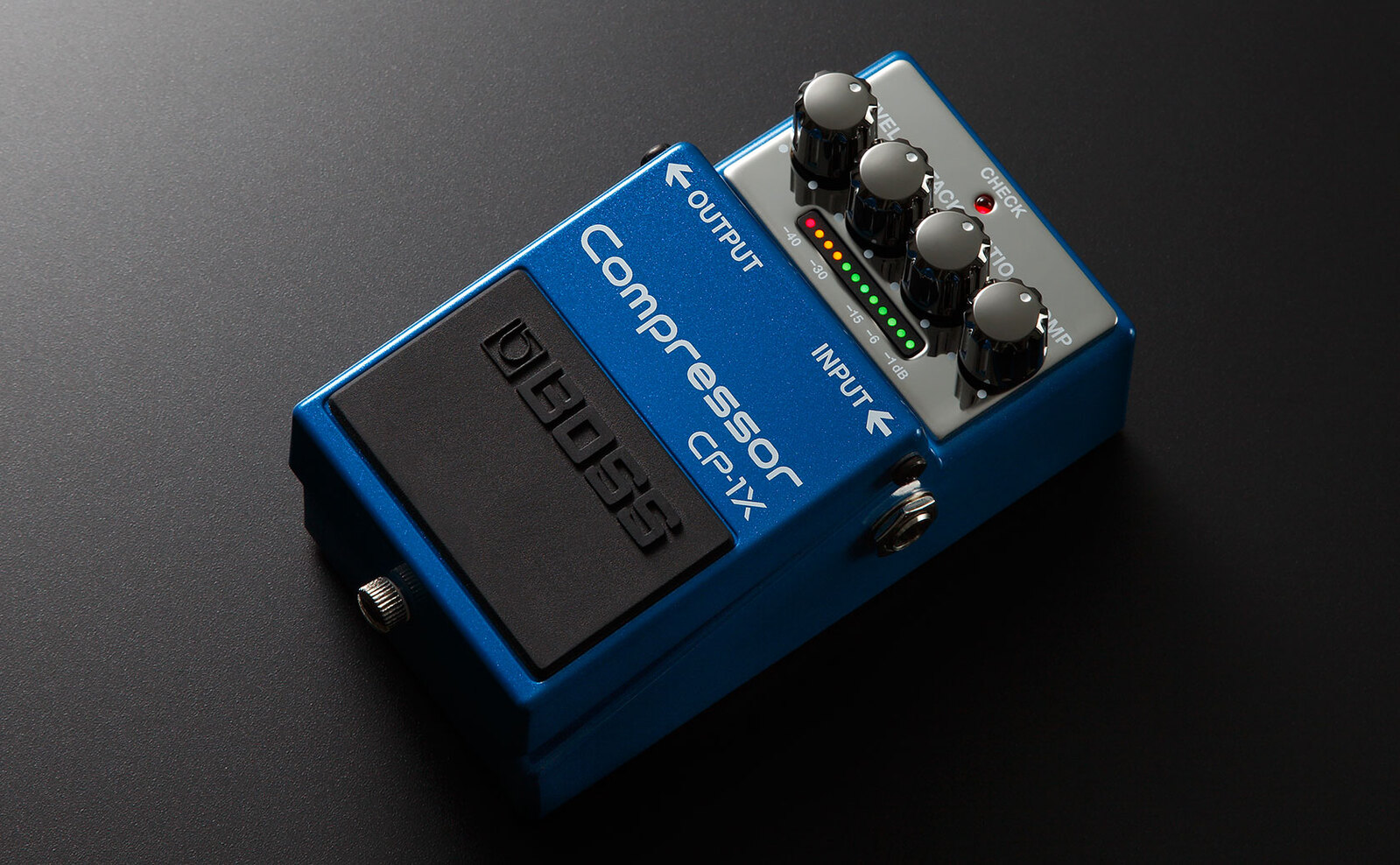

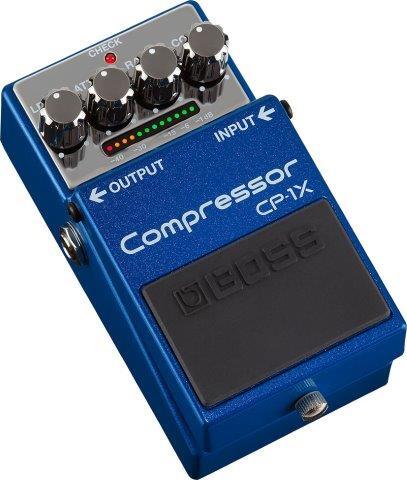

NEXT-GENERATION GUITAR COMPRESSOR FOR EXPRESSIVE PLAYERS

Powered by BOSS’s MDP technology, the CP-1X is a new type of multiband compressor for guitar that preserves the character of your instrument and technique for unlimited musical expression. Intelligent processing analyzes your signal in multiple dimensions as you play, providing advanced dynamics control that never colors or muddies your tone like typical stompbox compressors can. The simple, four-knob interface makes it easy to dial in sophisticated results, while the handy gain reduction indicator always shows you how much compression is being applied. Optimized for all types of guitars, the CP-1X offers next-generation performance for every style of music.

Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
COMP knob
RATIO knob
ATTACK knob
LEVEL knob
Indicators
CHECK indicator (Serves also as battery check indicator)
GAIN REDUCTION indicator
Connectors
INPUT jack
OUTPUT jack
DC IN jack
Power Supply
Alkaline battery (9V, 6LR61)
AC adaptor (sold separately)
Working Voltage
18 V
Current Draw
90 mA
Expected battery life under continuous use
Alkaline: Approx. 3 hours
* These figures will vary depending on the actual conditions of use.
Accessories
Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9V, 6LR61)
Option (sold separately)
AC adaptor (PSA series)
SIZE AND WEIGHT
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
450 g
1 lb
SKU CP1X
Brand Boss
Shipping Weight 2.0000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.130m
Shipping Cubic 0.000624000m3
Unit Of Measure ea
