Flexible and expandable

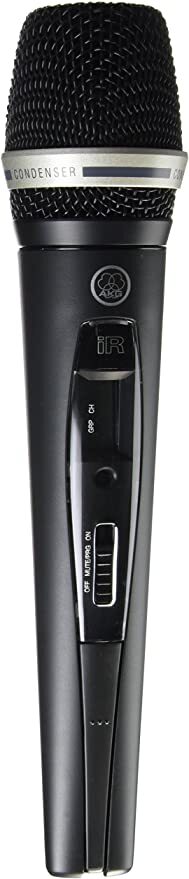

The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise. It continuously sends transmitter data, including low-battery information, to the receiver. An infrared data link in conjunction with the automatic frequency setup makes the HT470 extremely simple to use. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand. An enhanced battery identification automatically detects the used battery type and allows up to 14 hours of operation on one AA-size battery. The display shows the remaining operating time in hours. Available in two versions - D5 and C5

General Specifications

Audio frequency bandwidth35 - 20000 Hz

Signal to Noise120 dB-A

THD at 1 kHz0.7 Prozent

Operating temperature range-10 to 55 Celsius

Peak deviation48 kHz

Nominal deviation20 kHz

Radio Output Power (min/max)10 to 50 mW

Microphone head versionsD5; C5

Switching bandwidth30 MHz

Recommended simultaneous channels24

Number of selectable frequencies1220 (selectable in 25kHz steps)

Frequency SelectionSelectable frequency in 25kHz steps

Radio range (Line of sight)100m (depending on antenna system)

ModulationFM (Frequency Modulation)

Switchable RF powerno

Pilot Toneyes


Height237 mm

Width51 mm

Net Weight240 g





Battery typeFR 6 AA lithium Battery

Number of batteries1

Operating time14 h

Battery 2

Battery typeHR 6 AA (NiHM) rechargeable

Number of batteries1

Operating time8 h

Battery 1

Battery typeLR6 AA alkaline

Number of batteries1

Operating time7 h

SKU HT-470D5
Barcode # 885038 029465
Brand Akg
Shipping Weight 1.0000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
Unit Of Measure ea
